Speed Reduction · Smart Curve Warning

Safely guide motorists through roadway curves.

Slow speeds and enhance driver awareness ahead of dangerous curve segments with wirelessly connected, LED-enhanced chevron signs.

Request a Quote Get the PRODUCT BRIEF

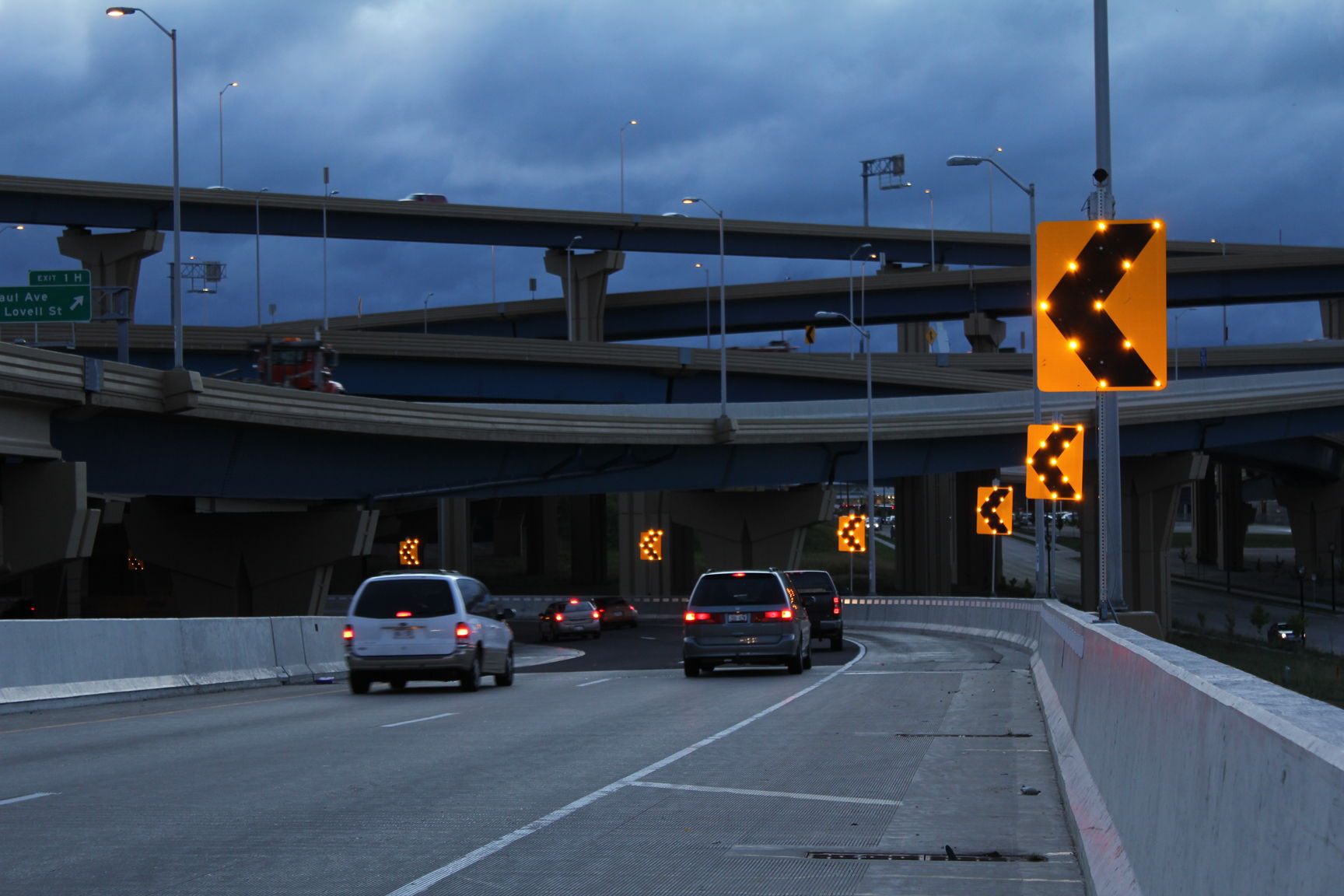

Sequential LED chevrons flashing along a highway curve

One system. Every part working together.

Smart Curve Warning reads approaching speed, decides, and warns drivers before the curve. Here is what is on the road and what each part does.

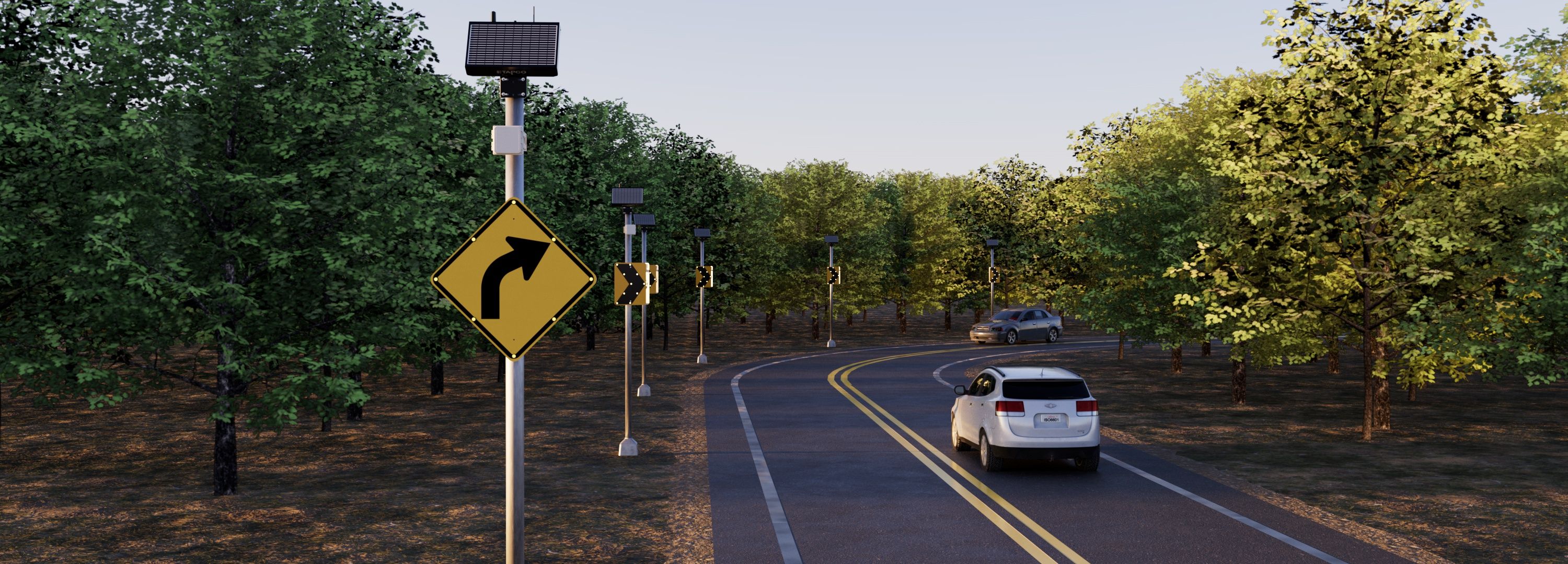

Smart Curve Warning system

  1. Advance warning of the curve, placed at the engineered distance and synchronized with the chevrons.

    See the sign →

  2. Reads every vehicle's approach speed and decides whether to activate.

  3. The MUTCD W1 curve legend, edge-lit, fired for drivers over the advisory speed.

    See the sign →

  4. Edge-lit chevrons through the curve, sequential or simultaneous flash, timed to lead the driver's eye.

    See the system →

  5. Activations, speeds and health reported to the cloud platform. Solar or AC power; ruggedized option for harsh sites.

Every Smart Curve Warning system includes Smart Hub

Remote managementManage every device from the office
Instant alertsKnow when anything needs attention
Data & reportsProve the program to your board
Request a Demo

Enhancing curve safety on roadways everywhere

Need more information?

Brochure White Paper Data Sheet

Proven on Real Curves

97% Decrease in Crashes on a Heavily-Trafficked Interchange How WisDOT drastically increased safety on a Milwaukee interchange curve with dedicated warning technology. Read case study →
Proven to Reduce Horizontal Curve Crash Rates by 58% A Federal Highway Administration (FHWA) report found that curve warning technology effectively reduces speeds to enhance safety. Read case study →
“We have also installed this curve warning system on two-lane roads, and they have been very successful in reducing crashes.”
Tom Heydel · Signing & Marking Operations & Design Engineer · WisDOT Southeast Region

Resources

BrochureSmart curve warning
White PaperReducing rural roadway departures
Case studyWisconsin DOT cuts interchange crashes 97%

Frequently Asked Questions

How is the system activated?

Available options include:
• 24/7 flashing
• Dusk-to-dawn
• Time clock
• Radar

Radar detection activation options include vehicle presence, speed activation and speed with classification activation.

Precipitation sensors are also available to tailor radar activation further in the event of inclement weather.

Are TAPCO's curve systems MUTCD compliant?

Yes. Each BlinkerChevron™ is MUTCD compliant and flashes to MUTCD section 2A.07. Our curve signs also use standard W1 legends sized to the needs of your road.

Do systems work on two-lane rural roads — or only highways?

Both. Systems are tailored to fit the contours of each curve segment, rather than the road class and can be adopted anywhere curve warning is needed.

What are the benefits of connecting my system to Smart Hub?

Smart Hub allows agencies to track status and health of all curve systems in your network. Other features include access to activation data, remote adjustments to flash patterns and custom reporting.

And, in the event of system knockdowns, key stakeholders can receive text or email alerts.

How long do the LEDs last?

Our one-watt LEDs are rated for 100,000 hours. To ensure longevity, the LEDs are environmentally sealed and embedded underneath 3M DG3 sheeting with an anti-graffiti overlay.

Need help identifying the needs of your curve?

The experts at TAPCO are here to help. Simply tell us what challenges you're facing on your curve segments — and we'll work with you to find the right-fit system.

Talk to an expert →
Keep every system covered

Expert monitoring, inspections and maintenance from the same team that built it — ensuring optimal performance for years to come.

Explore our service plans →

Ready to make your streets safer?

A TAPCO engineer looks at your street, your budget and your timeline, and comes back with a plan.

Get a Quote
